Some Freedom Studio QEMU annoyances

1-

After add .s to Preferences → C/C++ → Files Types as Assembly Source file
rename a .S file with .s extension make C “extern” function declaration lost link .globl symbol.
The same code (with .s extension) work perfectly with gcc on Unmatched board.

Any way to make Freedom Studio QEMU work with .s file as it work with .S file ?

2-

printf(“123\n456\n789”); output only “123”

3-

“step” (F6) in C file ignore faraway breakpoint in .S file when there are many breakpoint. Only “step in” (F5) allow to go into .S file.
Same behavior happen when steping jal in .S file. And sometime with branch/jump instruction.

4-

Gap between instruction arrow pointer and PC in .S file editor window.
The disassembly window instruction arrow pointer is set correctly to the PC but adding source (“Show Source”) to the disassembly show the same gap.
There is no “Link with Active Debug Context” icon in file editor window.
How to synchronise source listing arrow with PC ?

Any way to make Freedom Studio QEMU work with .s file as it work with .S file ?

No. It’s an eclipse (or maybe CDT) issue.
Nothing to do with QEMU.
See here:

printf(“123\n456\n789”); output only “123”

Does doing fflush(stdout); after the printf make any difference?

I don’t really understand #3 and #4.

Even with fflush(stdout); the output is only “123”
Also try:
setbuf(stdout, NULL);
setlinebuf(stdout);
after each printf does nothing.
without success

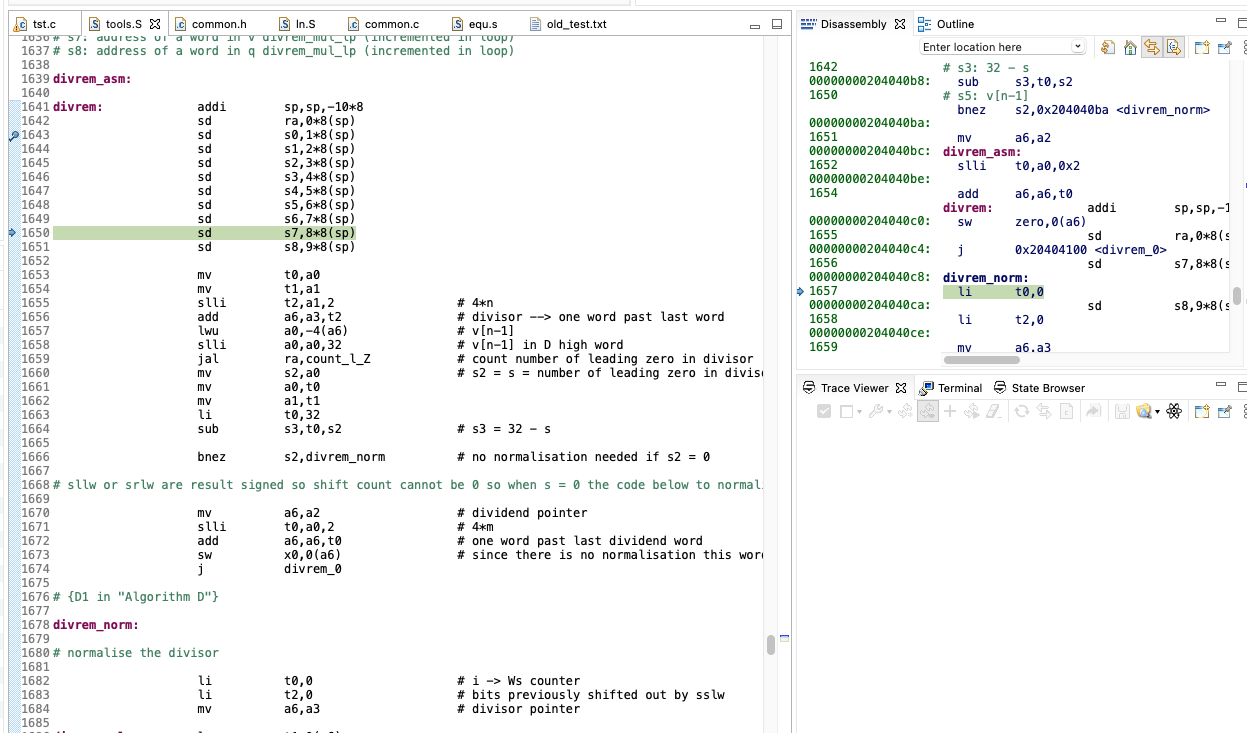

The breakpoint point was set at line 1643 in tools.S file (editor window) in screen_shot_1
but in fact break is done at line 1681 as shown in “Disassembly” window.
There is a gap of 25 instructions between the PC arrow (blue, before line number) in tools.S file editor window and the PC arrow (blue, before instruction address in “Disassembly” window)

In screen_shot_2 the “Show Source” button add the .S source in “Disassembly” window.
The .S source and disassembly instruction are completely desynchronized.

Note: this happen with large .S file. For small .S file everything work well.

What happens if you do this?

printf("123\r\n456\r\n789\r\n");

With regard to the breakpoint and assembly issue have you enabled instruction stepping mode?

No change at all (even reversing \n \r order).

What do you mean ? For stepping I use F5 and F6 keyboard key.

The issue linked by @nick.knight above explains the problem that you’re having with printf().

Maybe you can use a standalone simple printf() instead?
For example:

There are many others out there.

What do you mean ?

See here for how to enable instruction stepping mode:

https://rtist.hcldoc.com/help/index.jsp?topic=%2Forg.eclipse.cdt.doc.user%2Ftasks%2Fcdt_t_disassembly.htm

In “Disassembly” window without source code everything work fine: breakpoint are set at the right place and step instruction is also done at the right place.
But follow the execution in “Disassembly” window is not so easy than follow the execution in editor window.
Unfortunatly for large .S file the PC arrow is at the wrong instruction in editor window. The regsiter window then give wrong value.
The break point in the first screenshot is set at the line 1643 but the debugger has stopped at 1650, in advance of 7 instructions.
And the PC (shown by blue arrow) is not at this line but at line 1682.

Yes, we can ignore the editor window and work only with “Disassembly” window but working in editor window is much more easy since we see the source code.
Adding source code in “Disassembly” window does not help as you see in the second screenshot since source code is completely desynchronized.

What optimization level are you compiling with?
Hopefully -O0 or -Og?
If you’re using something else then high level source line tracking may not work as you expect.

Where in Freedom Studio can I get the optimization level ?

http://en.ica123.com/risc-v-c-programming-1-(1)use-freedom-studio-to-create-a-new-project/

show the optimization level can be found in project Properties → C/C++ Build → Properties → Optimization

but the same window in my project don’t show any Optimization

Are you using a Makefile project rather than a Managed Make project? If so then the optimization level will presumably be specified in your Makefile rather than the project settings.

This article touches on the differences between Eclipse CDT Makefile projects and Managed Make projects. It’s not Freedom Studio specific but the general principles apply to most Eclipse/CDT based IDEs.

The first Makefile I found is “qemu_sifive_s51_sifive_welcome” in “src” do not hold any reference to optimization level.

The second (in "scripts) hold a only a comment to optimization level

# Benchmark CFLAGS go after loading the CONFIGURATION so that they can override the optimization level

*************************** first Makefile

Copyright 2019 SiFive, Inc

SPDX-License-Identifier: Apache-2.0

PROGRAM ?= sifive-welcome

$(PROGRAM): $(wildcard *.c) $(wildcard *.h) $(wildcard *.S)

clean:
rm -f $(PROGRAM) $(PROGRAM).hex

*************************** second Makefile

PROGRAM = sifive-welcome
TARGET = qemu-sifive-s51

The configuration defaults to Debug. Valid choices are:

- debug

- release

CONFIGURATION ?= debug

#############################################################

Makefile Arguments

#############################################################

BSP_DIR sets the path to the target-specific board support package.

BSP_DIR ?= $(abspath bsp)

SRC_DIR sets the path to the program source directory

SRC_DIR ?= $(abspath src)

FREERTOS_SOURCE_PATH sets the path to the FreeRTOS source directory

export FREERTOS_SOURCE_PATH = $(abspath FreeRTOS-metal)

Set FREEDOM_E_SDK_VENV_PATH to use a project-local virtualenv

export FREEDOM_E_SDK_VENV_PATH ?= $(abspath .)/venv

Set FREERTOS_METAL_VENV_PATH to use same venv as FREEDOM_E_SDK_VENV_PATH

export FREERTOS_METAL_VENV_PATH ?= $(FREEDOM_E_SDK_VENV_PATH)

SYSTEMVIEW_SOURCE_PATH sets the path to the SEGGER SystemView source directory

export SYSTEMVIEW_SOURCE_PATH = $(abspath Segger_SystemView-metal)

SCL_SOURCE_PATH sets the path to the SCL source directory

export SCL_SOURCE_PATH = $(abspath scl-metal)

#############################################################

BSP loading

#############################################################

There must be a settings makefile fragment in the BSP’s board directory.

ifeq ($(wildcard $(BSP_DIR)/settings.mk),)
$(error Unable to find BSP for $(TARGET), expected to find $(BSP_DIR)/settings.mk)
endif

Include the BSP settings

include $(BSP_DIR)/settings.mk

Check that settings.mk sets RISCV_ARCH and RISCV_ABI

ifeq ($(RISCV_ARCH),)
$(error $(BSP_DIR)/board.mk must set RISCV_ARCH, the RISC-V ISA string to target)
endif

ifeq ($(RISCV_ABI),)
$(error $(BSP_DIR)/board.mk must set RISCV_ABI, the ABI to target)
endif

ifeq ($(RISCV_CMODEL),)
RISCV_CMODEL = medany
endif

ifeq ($(RISCV_LIBC),)
RISCV_LIBC=nano
endif

ifeq ($(RISCV_LIBC),segger)

Disable format string errors when building with -Werror

RISCV_CFLAGS += -Wno-error=format=

LIBMETAL_EXTRA=-lmetal-segger
METAL_WITH_EXTRA=–with-builtin-libmetal-segger
SPEC=gloss-segger
endif

ifeq ($(RISCV_LIBC),nano)
LIBMETAL_EXTRA=-lmetal-gloss
METAL_WITH_EXTRA=–with-builtin-libgloss
SPEC=nano
endif

ifeq ($(SPEC),)
$(error RISCV_LIBC set to an unsupported value: $(RISCV_LIBC))
endif

ifeq ($(PROGRAM),dhrystone)
ifeq ($(LINK_TARGET),)
ifneq ($(TARGET),freedom-e310-arty)
ifneq ($(TARGET),sifive-hifive1)
ifneq ($(TARGET),sifive-hifive1-revb)
LINK_TARGET = ramrodata
endif
endif
endif
endif
endif

ifeq ($(PROGRAM),coremark)
ifeq ($(LINK_TARGET),)
LINK_TARGET = ramrodata
endif
endif

ifneq ($(findstring freertos,$(PROGRAM)),)
ifeq ($(LINK_TARGET),)
LINK_TARGET = freertos
endif
endif

ifeq ($(LINK_TARGET),)
LINK_TARGET = default
endif

Determines the XLEN from the toolchain tuple

ifeq ($(patsubst rv32%,rv32,$(RISCV_ARCH)),rv32)
RISCV_XLEN := 32
else ifeq ($(patsubst rv64%,rv64,$(RISCV_ARCH)),rv64)
RISCV_XLEN := 64
else
$(error Unable to determine XLEN from $(RISCV_ARCH))
endif

MTIME_RATE_HZ_DEF=32768
ifeq ($(findstring qemu,$(TARGET)),qemu)
MTIME_RATE_HZ_DEF=10000000
else
ifeq ($(findstring unleashed,$(TARGET)),unleashed)
MTIME_RATE_HZ_DEF=1000000
endif
endif

#############################################################

Toolchain

#############################################################

Allow users to select a different cross compiler.

CROSS_COMPILE ?= riscv64-unknown-elf

If users don’t specify RISCV_PATH then assume that the tools will just be in

their path.

ifeq ($(RISCV_PATH),)
RISCV_GCC := $(CROSS_COMPILE)-gcc
RISCV_GXX := $(CROSS_COMPILE)-g++
RISCV_OBJDUMP := $(CROSS_COMPILE)-objdump
RISCV_OBJCOPY := $(CROSS_COMPILE)-objcopy
RISCV_GDB := $(CROSS_COMPILE)-gdb
RISCV_AR := $(CROSS_COMPILE)-ar
RISCV_SIZE := $(CROSS_COMPILE)-size
else
RISCV_GCC := $(abspath $(RISCV_PATH)/bin/$(CROSS_COMPILE)-gcc)
RISCV_GXX := $(abspath $(RISCV_PATH)/bin/$(CROSS_COMPILE)-g++)
RISCV_OBJDUMP := $(abspath $(RISCV_PATH)/bin/$(CROSS_COMPILE)-objdump)
RISCV_OBJCOPY := $(abspath $(RISCV_PATH)/bin/$(CROSS_COMPILE)-objcopy)
RISCV_GDB := $(abspath $(RISCV_PATH)/bin/$(CROSS_COMPILE)-gdb)
RISCV_AR := $(abspath $(RISCV_PATH)/bin/$(CROSS_COMPILE)-ar)
RISCV_SIZE := $(abspath $(RISCV_PATH)/bin/$(CROSS_COMPILE)-size)
PATH := $(abspath $(RISCV_PATH)/bin):$(PATH)
endif

SEGGER_JLINK_EXE := JLinkExe
SEGGER_JLINK_GDB_SERVER := JLinkGDBServer

QEMU_RISCV32 = qemu-system-riscv32
QEMU_RISCV64 = qemu-system-riscv64

#############################################################

Software Flags

#############################################################

Set the arch, ABI, and code model

RISCV_CCASFLAGS += -march=$(RISCV_ARCH) -mabi=$(RISCV_ABI) -mcmodel=$(RISCV_CMODEL)
RISCV_CFLAGS += -march=$(RISCV_ARCH) -mabi=$(RISCV_ABI) -mcmodel=$(RISCV_CMODEL)
RISCV_CXXFLAGS += -march=$(RISCV_ARCH) -mabi=$(RISCV_ABI) -mcmodel=$(RISCV_CMODEL)
RISCV_ASFLAGS += -march=$(RISCV_ARCH) -mabi=$(RISCV_ABI) -mcmodel=$(RISCV_CMODEL)

Prune unused functions and data

ifeq ($(RISCV_SERIES),sifive-8-series)
ifeq ($(PROGRAM),dhrystone)
RISCV_CFLAGS += -fno-function-sections -fno-data-sections
RISCV_CXXFLAGS += -fno-function-sections -fno-data-sections
else
RISCV_CFLAGS += -ffunction-sections -fdata-sections
RISCV_CXXFLAGS += -ffunction-sections -fdata-sections
endif
else
RISCV_CFLAGS += -ffunction-sections -fdata-sections
RISCV_CXXFLAGS += -ffunction-sections -fdata-sections
endif

Include the Metal headers

RISCV_CCASFLAGS += -I$(abspath $(BSP_DIR)/install/include/)
RISCV_CFLAGS += -I$(abspath $(BSP_DIR)/install/include/)
RISCV_CXXFLAGS += -I$(abspath $(BSP_DIR)/install/include/)

Reference selected library

RISCV_ASFLAGS += --specs=$(SPEC).specs
RISCV_CCASFLAGS += --specs=$(SPEC).specs
RISCV_CFLAGS += --specs=$(SPEC).specs
RISCV_CXXFLAGS += --specs=$(SPEC).specs

Set the MTIME frequency

RISCV_CFLAGS += -DMTIME_RATE_HZ_DEF=$(MTIME_RATE_HZ_DEF)
RISCV_CXXFLAGS += -DMTIME_RATE_HZ_DEF=$(MTIME_RATE_HZ_DEF)

RISCV_CFLAGS += -fcommon

Turn on garbage collection for unused sections

RISCV_LDFLAGS += -Wl,–gc-sections

Turn on linker map file generation

RISCV_LDFLAGS += -Wl,-Map,$(PROGRAM).map

Turn off the C standard library

RISCV_LDFLAGS += -nostartfiles -nostdlib

Find the archive files and linker scripts

RISCV_LDFLAGS += -L$(sort $(dir $(abspath $(filter %.a,$^)))) -T$(abspath $(filter %.lds,$^))

Link to the relevant libraries

RISCV_LDLIBS += -Wl,–start-group -lc -lgcc -lm -lmetal $(LIBMETAL_EXTRA) -Wl,–end-group

Load the configuration Makefile

CONFIGURATION_FILE = $(wildcard $(CONFIGURATION).mk)
ifeq ($(words $(CONFIGURATION_FILE)),0)
$(error Unable to find the Makefile $(CONFIGURATION).mk for CONFIGURATION=$(CONFIGURATION))
endif
include $(CONFIGURATION).mk

Benchmark CFLAGS go after loading the CONFIGURATION so that they can override the optimization level

Checking if we use gcc-10 or not, which need different compiler options for better benchmark scores

GCC_VER_GTE10 := $(shell echo ${RISCV_GCC} -dumpversion | cut -f1-2 -d. >= 10 | bc )

ifeq ($(PROGRAM),dhrystone)
ifeq ($(DHRY_OPTION),)

Ground rules (default)

RISCV_XCFLAGS += -mexplicit-relocs -fno-inline
else ifeq ($(DHRY_OPTION),fast)

With inline and without lto

RISCV_XCFLAGS += -mexplicit-relocs -finline
else ifeq ($(DHRY_OPTION),best)

Best Score

RISCV_XCFLAGS += -finline -flto -fwhole-program
endif
RISCV_XCFLAGS += -DDHRY_ITERS=$(TARGET_DHRY_ITERS)
endif

ifeq ($(PROGRAM),coremark)
ifeq ($(RISCV_SERIES),$(filter $(RISCV_SERIES),sifive-7-series sifive-8-series))

8-series currently uses 7-series mtune, but this may change

RISCV_XCFLAGS += -O2 -fno-common -funroll-loops -finline-functions -funroll-all-loops -falign-functions=8 -falign-jumps=8 -falign-loops=8 -finline-limit=1000 -mtune=sifive-7-series -ffast-math
else
ifeq ($(RISCV_XLEN),32)
RISCV_XCFLAGS += -O2 -fno-common -funroll-loops -finline-functions -falign-functions=16 -falign-jumps=4 -falign-loops=4 -finline-limit=1000 -fno-if-conversion2 -fselective-scheduling -fno-tree-dominator-opts -fno-reg-struct-return -fno-rename-registers --param case-values-threshold=8 -fno-crossjumping -freorder-blocks-and-partition -fno-tree-loop-if-convert -fno-tree-sink -fgcse-sm -fno-strict-overflow
else
RISCV_XCFLAGS += -O2 -fno-common -funroll-loops -finline-functions -falign-functions=16 -falign-jumps=4 -falign-loops=4 -finline-limit=1000 -fno-if-conversion2 -fselective-scheduling -fno-tree-dominator-opts
endif # RISCV_XLEN==32
endif # RISCV_SERIES==sifive-7-series|sifive-8-series
RISCV_XCFLAGS += -DITERATIONS=$(TARGET_CORE_ITERS)
ifeq ($(GCC_VER_GTE10),1)

additional options for gcc-10 to get better performance

RISCV_XCFLAGS += -fno-tree-loop-distribute-patterns --param fsm-scale-path-stmts=3
endif # GCC_VER_GTE10==1
endif # PROGRAM==coremark

ifeq ($(findstring freertos,$(PROGRAM)),freertos)
RISCV_XCFLAGS += -DWAIT_MS=$(TARGET_FREERTOS_WAIT_MS)
endif

ifneq ($(filter rtl,$(TARGET_TAGS)),)
RISCV_XCFLAGS += -DHCA_BYPASS_TRNG
endif

A method to pass cycle delay

RISCV_XCFLAGS += -DMETAL_WAIT_CYCLE=$(TARGET_INTR_WAIT_CYCLE)

#############################################################

Software

#############################################################

PROGRAM_ELF ?= $(SRC_DIR)/$(CONFIGURATION)/$(PROGRAM).elf
PROGRAM_HEX ?= $(SRC_DIR)/$(CONFIGURATION)/$(PROGRAM).hex
PROGRAM_LST ?= $(SRC_DIR)/$(CONFIGURATION)/$(PROGRAM).lst

.PHONY: all
all: software

.PHONY: software
software: $(PROGRAM_ELF)

software: $(PROGRAM_HEX)

PROGRAM_SRCS = $(wildcard $(SRC_DIR)/.c) $(wildcard $(SRC_DIR)/.h) $(wildcard $(SRC_DIR)/*.S)

$(PROGRAM_ELF):
$(PROGRAM_SRCS)
$(BSP_DIR)/install/lib/$(CONFIGURATION)/libmetal.a
$(BSP_DIR)/install/lib/$(CONFIGURATION)/libmetal-gloss.a
$(BSP_DIR)/metal.$(LINK_TARGET).lds
mkdir -p $(dir $@)
$(MAKE) -C $(SRC_DIR) $(basename $(notdir $@))
PORT_DIR=$(PORT_DIR)
PROGRAM=$(PROGRAM)
AR=$(RISCV_AR)
CC=$(RISCV_GCC)
CXX=$(RISCV_GXX)
ASFLAGS="$(RISCV_ASFLAGS)"
CCASFLAGS="$(RISCV_CCASFLAGS)"
CFLAGS="$(RISCV_CFLAGS)"
CXXFLAGS="$(RISCV_CXXFLAGS)"
XCFLAGS="$(RISCV_XCFLAGS)"
LDFLAGS="$(RISCV_LDFLAGS)"
LDLIBS="$(RISCV_LDLIBS)"
FREERTOS_METAL_VENV_PATH="$(FREERTOS_METAL_VENV_PATH)"
mv $(SRC_DIR)/$(basename $(notdir $@)) $@
mv $(SRC_DIR)/$(basename $(notdir $@)).map $(dir $@)
touch -c $@
$(RISCV_OBJDUMP) --source --all-headers --demangle --line-numbers --wide $@ > $(PROGRAM_LST)
$(RISCV_SIZE) $@

Use elf2hex if we’re creating a hex file for RTL simulation

ifneq ($(filter rtl,$(TARGET_TAGS)),)
.PHONY: software
$(PROGRAM_HEX):
scripts/elf2hex/install/bin/$(CROSS_COMPILE)-elf2hex
$(PROGRAM_ELF)
$< --output $@ --input $(PROGRAM_ELF) --bit-width $(COREIP_MEM_WIDTH)
else
$(PROGRAM_HEX):
$(PROGRAM_ELF)
$(RISCV_OBJCOPY) -O ihex $(PROGRAM_ELF) $@
endif

.PHONY: clean-software
clean-software:
$(MAKE) -C $(SRC_DIR) PORT_DIR=$(PORT_DIR) clean
rm -rf $(SRC_DIR)/$(CONFIGURATION)
.PHONY: clean
clean: clean-software

#############################################################

elf2hex

#############################################################
scripts/elf2hex/build/Makefile: scripts/elf2hex/configure
@rm -rf $(dir $@)
@mkdir -p $(dir $@)
cd $(dir $@);
$(abspath $<)
–prefix=$(abspath $(dir $<))/install
–target=$(CROSS_COMPILE)

scripts/elf2hex/install/bin/$(CROSS_COMPILE)-elf2hex: scripts/elf2hex/build/Makefile
$(MAKE) -C $(dir $<) install
touch -c $@

.PHONY: clean-elf2hex
clean-elf2hex:
rm -rf scripts/elf2hex/build scripts/elf2hex/install
clean: clean-elf2hex

#############################################################

Compiles an instance of Metal targeted at $(TARGET)

#############################################################
METAL_SOURCE_PATH ?= freedom-metal
METAL_HEADER = $(BSP_DIR)/metal.h
METAL_INLINE = $(BSP_DIR)/metal-inline.h
PLATFORM_HEADER = $(BSP_DIR)/metal-platform.h

METAL_PREFIX = $(abspath $(BSP_DIR)/install)
METAL_BUILD_DIR = $(abspath $(BSP_DIR)/build/$(CONFIGURATION))
METAL_LIB_DIR = $(abspath $(BSP_DIR)/install/lib/$(CONFIGURATION))

METAL_HEADER_GENERATOR = freedom-metal_header-generator
BARE_HEADER_GENERATOR = freedom-bare_header-generator

OVERLAY_GENERATOR = scripts/devicetree-overlay-generator/generate_overlay.py
LDSCRIPT_GENERATOR = scripts/ldscript-generator/generate_ldscript.py
CMSIS_SVD_GENERATOR = scripts/cmsis-svd-generator/generate_svd.py
SETTINGS_GENERATOR = scripts/esdk-settings-generator/generate_settings.py

Metal BSP file generation

Requires devicetree compiler (dtc) and freedom-devicetree-tools to be in the

PATH, otherwise the existing files are used.

This allows user changes to the devicetree in $(BSP_DIR)/design.dts to be

propagated through to the end application with a single invocation of Make

$(BSP_DIR)/design.dts: $(BSP_DIR)/core.dts $(OVERLAY_GENERATOR)
$(MAKE) -f scripts/virtualenv.mk virtualenv
. $(FREEDOM_E_SDK_VENV_PATH)/bin/activate && $(OVERLAY_GENERATOR) --type $(TARGET) --output $@ --rename-include $(notdir $<) $<

$(BSP_DIR)/metal.default.lds: $(BSP_DIR)/design.dts $(LDSCRIPT_GENERATOR)
$(MAKE) -f scripts/virtualenv.mk virtualenv
. $(FREEDOM_E_SDK_VENV_PATH)/bin/activate && $(LDSCRIPT_GENERATOR) -d $< -o $@

$(BSP_DIR)/metal.ramrodata.lds: $(BSP_DIR)/design.dts $(LDSCRIPT_GENERATOR)
$(MAKE) -f scripts/virtualenv.mk virtualenv
. $(FREEDOM_E_SDK_VENV_PATH)/bin/activate && $(LDSCRIPT_GENERATOR) -d $< -o $@ --ramrodata

$(BSP_DIR)/metal.scratchpad.lds: $(BSP_DIR)/design.dts $(LDSCRIPT_GENERATOR)
$(MAKE) -f scripts/virtualenv.mk virtualenv
. $(FREEDOM_E_SDK_VENV_PATH)/bin/activate && $(LDSCRIPT_GENERATOR) -d $< -o $@ --scratchpad

$(BSP_DIR)/metal.freertos.lds: $(BSP_DIR)/design.dts $(LDSCRIPT_GENERATOR)
$(MAKE) -f scripts/virtualenv.mk virtualenv
. $(FREEDOM_E_SDK_VENV_PATH)/bin/activate && $(LDSCRIPT_GENERATOR) -d $< -o $@ --freertos

$(BSP_DIR)/design.svd: $(BSP_DIR)/design.dts $(CMSIS_SVD_GENERATOR)
$(MAKE) -f scripts/virtualenv.mk virtualenv
. $(FREEDOM_E_SDK_VENV_PATH)/bin/activate && $(CMSIS_SVD_GENERATOR) -d $< -o $@

$(BSP_DIR)/settings.mk: $(BSP_DIR)/design.dts $(SETTINGS_GENERATOR)
$(MAKE) -f scripts/virtualenv.mk virtualenv
. $(FREEDOM_E_SDK_VENV_PATH)/bin/activate && $(SETTINGS_GENERATOR) -d $< -o $@ -t $(TARGET)

ifeq ($(findstring spike,$(TARGET)),spike)
$(BSP_DIR)/spike_options.sh:
echo “export SPIKE_OPTIONS=”"" > $@

ifneq ($(shell which spike),)
$(BSP_DIR)/core.dts: $(BSP_DIR)/spike_options.sh
. $< && scripts/spikedts $@
endif # which spike
endif # findstring spike,$(TARGET)

ifneq ($(shell which dtc),)
ifneq ($(shell which $(METAL_HEADER_GENERATOR)),)

$(BSP_DIR)/design.dtb: $(BSP_DIR)/design.dts
cd $(dir $@) && dtc -I dts -O dtb -o $(notdir $@) $(notdir $<)

$(METAL_INLINE): $(BSP_DIR)/design.dtb
$(METAL_HEADER): $(BSP_DIR)/design.dtb
cd $(dir $@) && $(METAL_HEADER_GENERATOR) -d $(notdir $<) -o $(notdir $@)

$(PLATFORM_HEADER): $(BSP_DIR)/design.dtb
cd $(dir $@) && $(BARE_HEADER_GENERATOR) -d $(notdir $<) -o $(notdir $@)

.PHONY: bsp
metal-bsp:
$(METAL_HEADER) $(METAL_INLINE) $(PLATFORM_HEADER)
$(BSP_DIR)/metal.default.lds
$(BSP_DIR)/metal.ramrodata.lds
$(BSP_DIR)/metal.scratchpad.lds
$(BSP_DIR)/metal.freertos.lds
$(BSP_DIR)/settings.mk
else
.PHONY: bsp
metal-bsp:
@echo “Make cannot generate a BSP because it cannot find freedom-devicetree-tools”
@exit 1
endif # which $(METAL_HEADER_GENERATOR)
else
.PHONY: bsp
metal-bsp:
@echo “Make cannot generate a BSP because it cannot find dtc”
@exit 1
endif # which dtc

.PHONY: metal
metal: $(METAL_LIB_DIR)/stamp

$(METAL_BUILD_DIR)/Makefile:
$(METAL_HEADER) $(METAL_INLINE) $(PLATFORM_HEADER)
$(BSP_DIR)/settings.mk
@rm -rf $(dir $@)
@mkdir -p $(dir $@)
cd $(dir $@) &&
CFLAGS="$(RISCV_CFLAGS)"
$(abspath $(METAL_SOURCE_PATH)/configure)
–host=$(CROSS_COMPILE)
–prefix=$(METAL_PREFIX)
–libdir=$(METAL_LIB_DIR)
$(METAL_WITH_EXTRA)
–with-machine-header=$(abspath $(METAL_HEADER))
–with-machine-inline=$(abspath $(METAL_INLINE))
–with-platform-header=$(abspath $(PLATFORM_HEADER))
touch -c $@

$(METAL_LIB_DIR)/stamp: $(METAL_BUILD_DIR)/Makefile
$(MAKE) -C $(METAL_BUILD_DIR) install
date > $@

$(METAL_LIB_DIR)/lib%.a: $(METAL_LIB_DIR)/stamp ;@:

If we’re cleaning the last Metal library for a TARGET, then remove

the install directory, otherwise just remove the built libs for that

CONFIGURATION.

ifeq ($(words $(wildcard $(METAL_PREFIX)/lib/*)),1)
METAL_CLEAN = $(METAL_PREFIX)
else
METAL_CLEAN = $(METAL_LIB_DIR)
endif

.PHONY: clean-metal
clean-metal:
rm -rf $(METAL_CLEAN)
rm -rf $(METAL_BUILD_DIR)
clean: clean-metal

metal_install: metal
$(MAKE) -C $(METAL_SOURCE_PATH) install

When you build your project the build console output should clarify what optimization options are used.

There are a lot -O0 but no -Og.


09:22:40 **** Build of configuration debug for project qemu_sifive_s51_sifive_welcome ****
make all CONFIGURATION=debug
cd /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/build/debug/ &&
CFLAGS="-march=rv64imac -mabi=lp64 -mcmodel=medany -ffunction-sections -fdata-sections -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/install/include --specs=nano.specs -DMTIME_RATE_HZ_DEF=10000000 -fcommon -O0 -g"
/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal/configure
–host=riscv64-unknown-elf
–prefix=/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/install
–libdir=/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/install/lib/debug
–with-builtin-libgloss
–with-machine-header=/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/metal.h
–with-machine-inline=/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/metal-inline.h
–with-platform-header=/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/metal-platform.h
checking for a BSD-compatible install… /usr/bin/install -c
checking whether build environment is sane… yes
checking for riscv64-unknown-elf-strip… riscv64-unknown-elf-strip
checking for a thread-safe mkdir -p… /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal/install-sh -c -d
checking for gawk… no
checking for mawk… no
checking for nawk… no
checking for awk… awk
checking whether make sets $(MAKE)… yes
checking whether make supports nested variables… yes
checking whether to enable maintainer-specific portions of Makefiles… no
checking build system type… x86_64-apple-darwin20.1.0
checking host system type… riscv64-unknown-elf
checking for riscv64-unknown-elf-gcc… riscv64-unknown-elf-gcc
checking whether the C compiler works… yes
checking for C compiler default output file name… a.out
checking for suffix of executables…
checking whether we are cross compiling… yes
checking for suffix of object files… o
checking whether we are using the GNU C compiler… yes
checking whether riscv64-unknown-elf-gcc accepts -g… yes
checking for riscv64-unknown-elf-gcc option to accept ISO C89… none needed
checking whether riscv64-unknown-elf-gcc understands -c and -o together… yes
checking for style of include used by make… GNU
checking dependency style of riscv64-unknown-elf-gcc… gcc3
checking for riscv64-unknown-elf-ranlib… riscv64-unknown-elf-ranlib
checking for riscv64-unknown-elf-ar… riscv64-unknown-elf-ar
checking the archiver (riscv64-unknown-elf-ar) interface… ar
checking dependency style of riscv64-unknown-elf-gcc… gcc3
checking that generated files are newer than configure… done
configure: creating ./config.status
config.status: creating Makefile
config.status: executing depfiles commands
touch -c /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/build/debug/Makefile
make -C /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/build/debug install
make[1]: Entering directory ‘/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/build/debug’
cp /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/metal.h metal/machine.h
cp /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/metal-inline.h metal/machine/inline.h
cp /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/metal-platform.h metal/machine/platform.h
make install-am
make[2]: Entering directory ‘/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/build/debug’
depbase=echo src/drivers/fixed-clock.o | sed 's|[^/]*$|.deps/&|;s|\.o$||';
riscv64-unknown-elf-gcc -DPACKAGE_NAME=“freedom-metal” -DPACKAGE_TARNAME=“freedom-metal” -DPACKAGE_VERSION=“v0.1.2” -DPACKAGE_STRING=“freedom-metal\ v0.1.2” -DPACKAGE_BUGREPORT=“Issues · sifive/freedom-metal · GitHub” -DPACKAGE_URL=“GitHub - sifive/freedom-metal: Bare Metal Compatibility Library for the Freedom Platform” -DPACKAGE=“freedom-metal” -DVERSION=“v0.1.2” -I. -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal -march=rv64imac -mabi=lp64 -mcmodel=medany -ffunction-sections -fdata-sections -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/install/include --specs=nano.specs -DMTIME_RATE_HZ_DEF=10000000 -fcommon -O0 -g -MT src/drivers/fixed-clock.o -MD -MP -MF $depbase.Tpo -c -o src/drivers/fixed-clock.o /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal/src/drivers/fixed-clock.c &&
mv -f $depbase.Tpo $depbase.Po
depbase=echo src/drivers/fixed-factor-clock.o | sed 's|[^/]*$|.deps/&|;s|\.o$||';
riscv64-unknown-elf-gcc -DPACKAGE_NAME=“freedom-metal” -DPACKAGE_TARNAME=“freedom-metal” -DPACKAGE_VERSION=“v0.1.2” -DPACKAGE_STRING=“freedom-metal\ v0.1.2” -DPACKAGE_BUGREPORT=“Issues · sifive/freedom-metal · GitHub” -DPACKAGE_URL=“GitHub - sifive/freedom-metal: Bare Metal Compatibility Library for the Freedom Platform” -DPACKAGE=“freedom-metal” -DVERSION=“v0.1.2” -I. -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal -march=rv64imac -mabi=lp64 -mcmodel=medany -ffunction-sections -fdata-sections -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/install/include --specs=nano.specs -DMTIME_RATE_HZ_DEF=10000000 -fcommon -O0 -g -MT src/drivers/fixed-factor-clock.o -MD -MP -MF $depbase.Tpo -c -o src/drivers/fixed-factor-clock.o /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal/src/drivers/fixed-factor-clock.c &&
mv -f $depbase.Tpo $depbase.Po
depbase=echo src/drivers/inline.o | sed 's|[^/]*$|.deps/&|;s|\.o$||';
riscv64-unknown-elf-gcc -DPACKAGE_NAME=“freedom-metal” -DPACKAGE_TARNAME=“freedom-metal” -DPACKAGE_VERSION=“v0.1.2” -DPACKAGE_STRING=“freedom-metal\ v0.1.2” -DPACKAGE_BUGREPORT=“Issues · sifive/freedom-metal · GitHub” -DPACKAGE_URL=“GitHub - sifive/freedom-metal: Bare Metal Compatibility Library for the Freedom Platform” -DPACKAGE=“freedom-metal” -DVERSION=“v0.1.2” -I. -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal -march=rv64imac -mabi=lp64 -mcmodel=medany -ffunction-sections -fdata-sections -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/install/include --specs=nano.specs -DMTIME_RATE_HZ_DEF=10000000 -fcommon -O0 -g -MT src/drivers/inline.o -MD -MP -MF $depbase.Tpo -c -o src/drivers/inline.o /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal/src/drivers/inline.c &&
mv -f $depbase.Tpo $depbase.Po
depbase=echo src/drivers/riscv_clint0.o | sed 's|[^/]*$|.deps/&|;s|\.o$||';
riscv64-unknown-elf-gcc -DPACKAGE_NAME=“freedom-metal” -DPACKAGE_TARNAME=“freedom-metal” -DPACKAGE_VERSION=“v0.1.2” -DPACKAGE_STRING=“freedom-metal\ v0.1.2” -DPACKAGE_BUGREPORT=“Issues · sifive/freedom-metal · GitHub” -DPACKAGE_URL=“GitHub - sifive/freedom-metal: Bare Metal Compatibility Library for the Freedom Platform” -DPACKAGE=“freedom-metal” -DVERSION=“v0.1.2” -I. -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal -march=rv64imac -mabi=lp64 -mcmodel=medany -ffunction-sections -fdata-sections -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/install/include --specs=nano.specs -DMTIME_RATE_HZ_DEF=10000000 -fcommon -O0 -g -MT src/drivers/riscv_clint0.o -MD -MP -MF $depbase.Tpo -c -o src/drivers/riscv_clint0.o /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal/src/drivers/riscv_clint0.c &&
mv -f $depbase.Tpo $depbase.Po
depbase=echo src/drivers/riscv_cpu.o | sed 's|[^/]*$|.deps/&|;s|\.o$||';
riscv64-unknown-elf-gcc -DPACKAGE_NAME=“freedom-metal” -DPACKAGE_TARNAME=“freedom-metal” -DPACKAGE_VERSION=“v0.1.2” -DPACKAGE_STRING=“freedom-metal\ v0.1.2” -DPACKAGE_BUGREPORT=“Issues · sifive/freedom-metal · GitHub” -DPACKAGE_URL=“GitHub - sifive/freedom-metal: Bare Metal Compatibility Library for the Freedom Platform” -DPACKAGE=“freedom-metal” -DVERSION=“v0.1.2” -I. -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal -march=rv64imac -mabi=lp64 -mcmodel=medany -ffunction-sections -fdata-sections -I/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/bsp/install/include --specs=nano.specs -DMTIME_RATE_HZ_DEF=10000000 -fcommon -O0 -g -MT src/drivers/riscv_cpu.o -MD -MP -MF $depbase.Tpo -c -o src/drivers/riscv_cpu.o /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/freedom-metal/src/drivers/riscv_cpu.c &&\

make[1]: Leaving directory ‘/Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src’
mv /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/sifive-welcome /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/debug/sifive-welcome.elf
mv /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/sifive-welcome.map /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/debug/
touch -c /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/debug/sifive-welcome.elf
/Applications/FreedomStudio.app/Contents/Eclipse/SiFive/riscv64-unknown-elf-toolchain-10.2.0-2020.12.8/bin/riscv64-unknown-elf-objdump --source --all-headers --demangle --line-numbers --wide /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/debug/sifive-welcome.elf > /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/debug/sifive-welcome.lst
/Applications/FreedomStudio.app/Contents/Eclipse/SiFive/riscv64-unknown-elf-toolchain-10.2.0-2020.12.8/bin/riscv64-unknown-elf-size /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/debug/sifive-welcome.elf
text data bss dec hex filename
42448 3056 19912 65416 ff88 /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/debug/sifive-welcome.elf
/Applications/FreedomStudio.app/Contents/Eclipse/SiFive/riscv64-unknown-elf-toolchain-10.2.0-2020.12.8/bin/riscv64-unknown-elf-objcopy -O ihex /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/debug/sifive-welcome.elf /Users/alain/wsFreedomStudio/qemu_sifive_s51_sifive_welcome/src/debug/sifive-welcome.hex

09:22:49 Build Finished. 0 errors, 0 warnings. (took 9s.596ms)
